Telescopic Conveyor

The Telescopic Conveyor from AV Automation Pvt. Ltd. enables highly efficient truck and container loading/unloading.

Get a Quote Customize Now whatsapp icon
Note : Customized solutions available. Please send an enquiry.

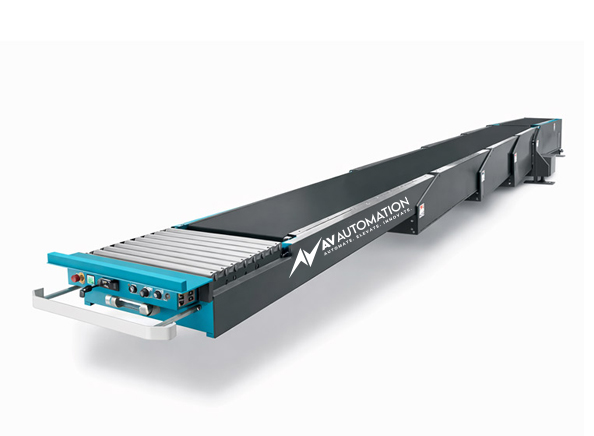

telescopic-conveyor
  • Overview
telescopic-conveyor
  • A boom-type extendable conveyor for vehicle loading.
  • Can extend or retract as required.
  • Typical features include front control panel with LED, rough top PVK belt, hydraulic guard, and buttons for boom movement.
Types:
  • Fixed telescopic conveyor
  • Mobile telescopic conveyor
  • Dockless telescopic belt conveyor
Get a Quote
Get a Quote
  • Fixed Telescopic Conveyor: Used for permanent dock installations where loading and unloading occur at a fixed position with high and continuous volume.
Section No. Fixed Length (mm) Extended Length (mm) Total Length (mm) Belt Width (mm)
3 5000-9500 7000-12000 12000-21500 600/800
4 5000-7500 10000-16000 15000-23500 600/800
5 6000-10000 16000-20000 22000-30000 600/800
  • Mobile Telescopic Conveyor: Used for flexible operations across multiple docks or locations, allowing easy movement and shared usage.
Section No. Fixed Length (mm) Extended Length (mm) Total Length (mm) Belt Width (mm)
3 5000-9500 7000-12000 12000-21500 600/800
4 5000-7500 10000-16000 15000-23500 600/800
  • Dockless Telescopic Belt Conveyor: Used for facilities without fixed docks, enabling direct ground-level truck loading and unloading.
Section No. Fixed Length (mm) Extended Length (mm) Total Length (mm) Belt Width (mm)
2 4000 3000 7000 600/800
3 5000-9500 7000-12000 12000-21500 600/800
4 5000-7500 10000-16000 15000-23500 600/800
5 6000-10000 16000-20000 22000-30000 600/800

Customized solutions available. Please send an enquiry.
